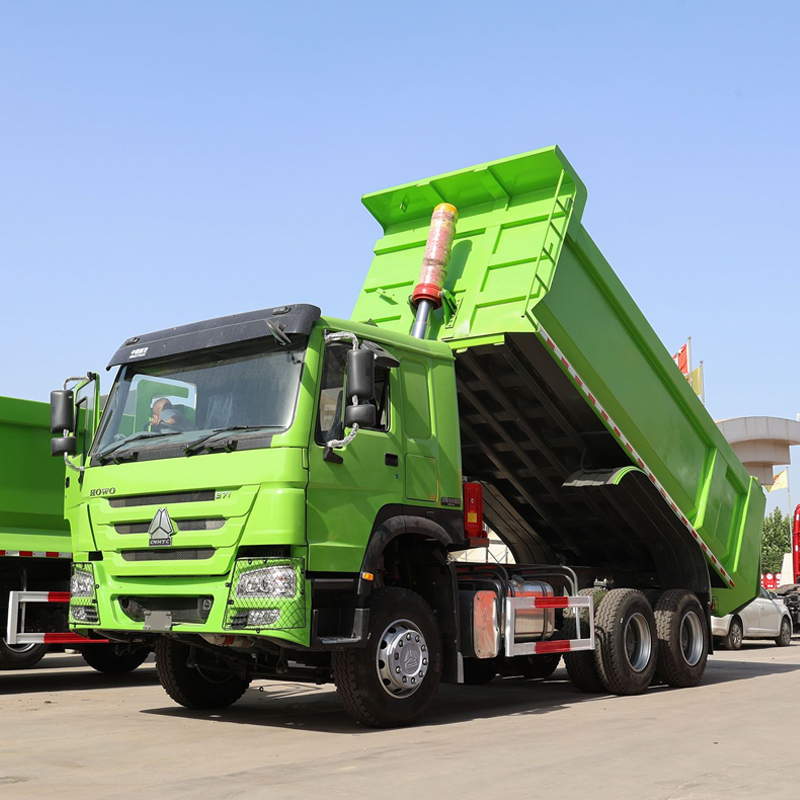

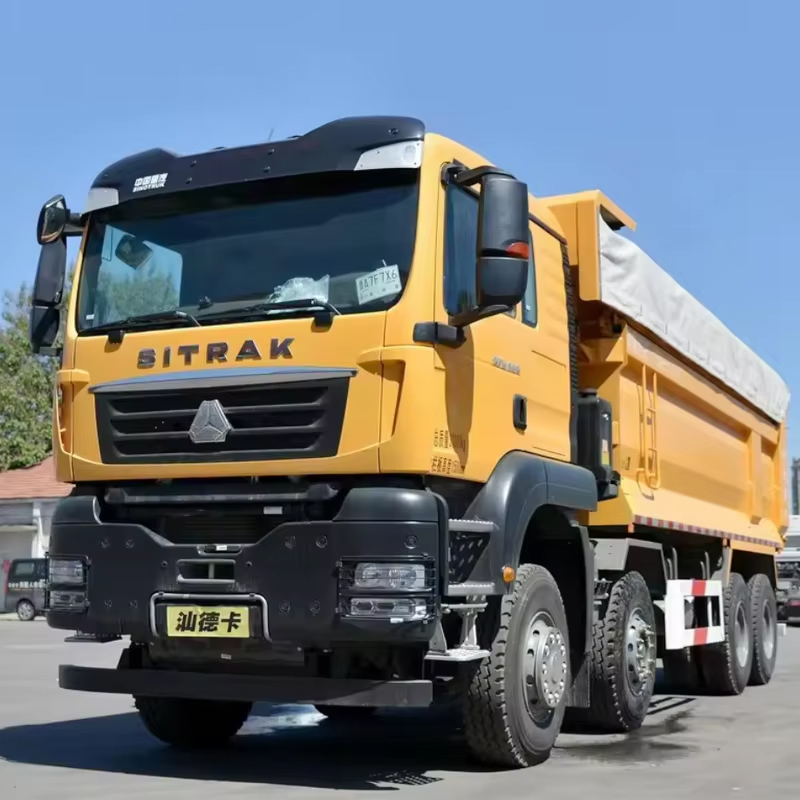

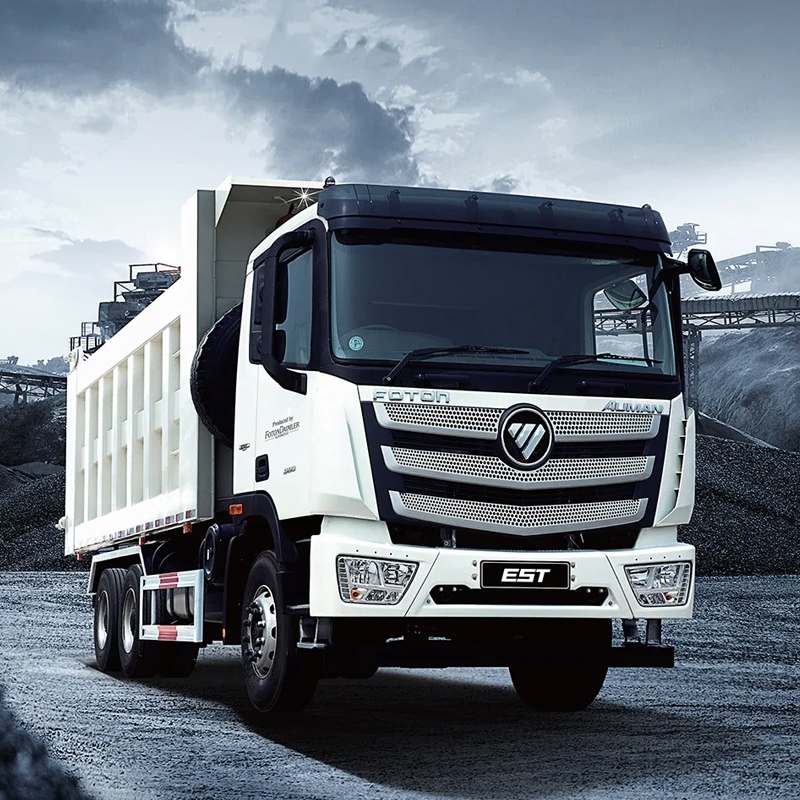

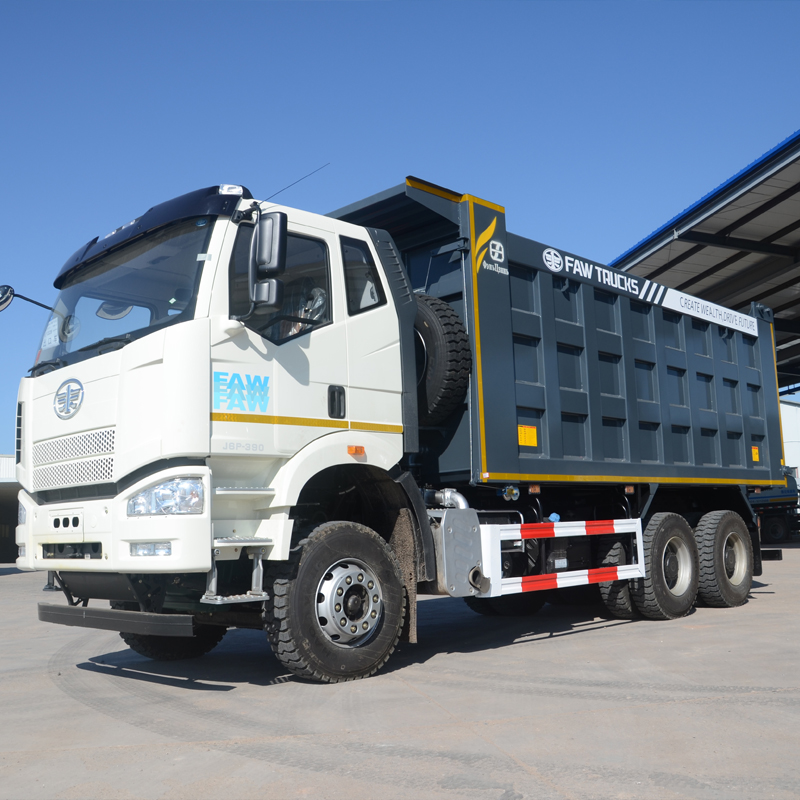

Dump truck

Dump truck
The dump truck is equipped with a hydraulic lifting mechanism, which can automatically tilt the cargo box to complete the unloading, eliminating the need for manual loading and unloading, greatly saving manpower and unloading time, and shortening the transportation cycle. The whole vehicle adopts a high-strength frame and wear-resistant cargo box design, with strong load-bearing capacity, sturdy and durable structure, and impact resistance and deformation resistance. With ample power, excellent climbing performance, and good chassis passability, it can easily adapt to complex road conditions such as construction sites, mines, and rugged rural areas. It is flexible in turning and easy to operate, and can efficiently transport various bulk materials such as sand, gravel, earth, ore, and slag. It has a wide range of applications, low operation and maintenance costs, and is an efficient and practical vehicle for engineering construction and short-distance material transportation.

Contcat: Michelle

Phone: +8618364117631

Whatsapp: +8618364117631

Address: Hanyu Jingu, Licheng District, Jinan City,

Shandong Province, China

Product Introduction

Parameter categoriesprojectNormal range / Typical value
Vehicle parametersDrive form6×4(3 轴)/8×4(4 轴)

External dimensions (length × width × height)8.8–10.5m × 2.3–2.55m × 3.0–3.5m

Interior dimensions of the cargo compartment (length × width × height)5.6–7.6m × 2.2–2.35m × 1.2–1.5m

Cargo compartment volume20–48 m³ (stacked)

Curb weight16–25t

Rated load15–30t

Maximum gross mass31–40t

Wheelbase3.6–4.0m(6×4);1.8+2.7–3.6m(8×4)

Minimum turning diameter18–24m
PowertrainEngine ModelWeichai WP10/WP12, Sinotruk MC11/MC13, Yuchai, etc.

Engine power294–400kW (400–540 hp)

Emission standardsNational V / National VI

GearboxFast 12-speed manual/automatic transmission

Fuel tank capacity300–400L
Chassis and Running GearFrameDouble-layer high-strength riveted beams, 8+8mm thick

Rear axleTwo-stage reduction gear, speed ratio 4.875–5.286

Tire specifications11.00R20/12.00R20 Steel Wire Tires

Ground clearance≥260mm

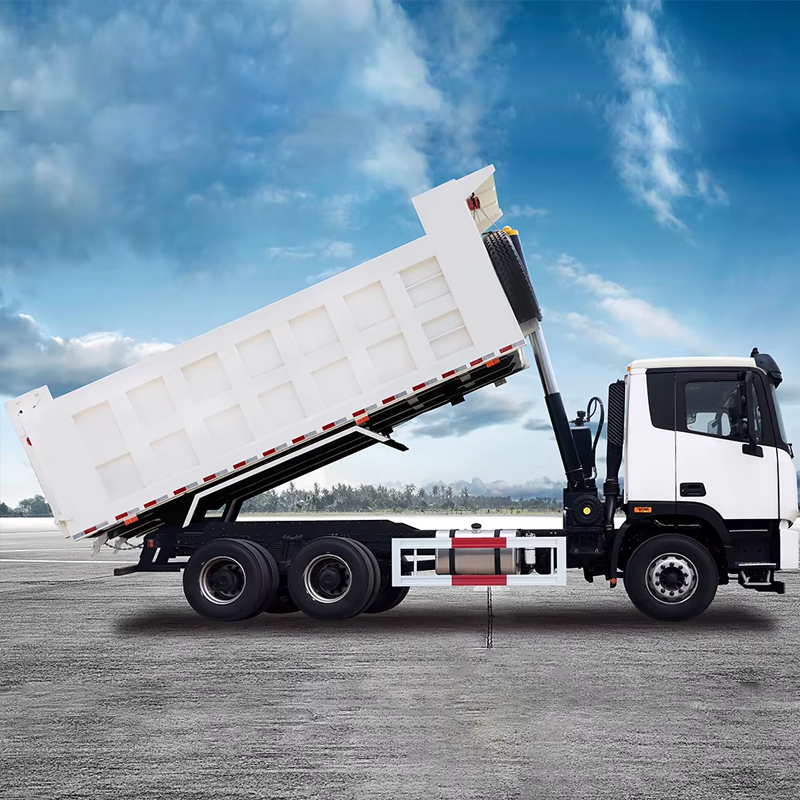

Hydraulic liftingLifting methodFront-mounted/center-mounted direct-push hydraulic cylinder

Lifting time8–15 seconds

Maximum lifting angle45°–50°
Performance parametersTop speed85–90km/h

Maximum gradeability≥25% (heavy load)

Fuel consumption per 100 kilometers35–45L (operating conditions)
